High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors

1
MOQ
$199.12-218.45
preço
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Peso líquido: 0,5 kg
Material: endureça de aço inoxidável
Tamanho: 110*5mm
No. de fibra: 12
Taxa de aprovação 3D: ≥98%
Perda de inserção: ≤0.20dB
Perda de retorno: ≥55dB (PC) ≥60dB (APC)
Tipo de conector: SC,FC,LC,ST,MU,E2000(PC/APC)
Tipo de máquina de polimento: Máquina de polimento de pressão central
Número de núcleos da fibra: 12
Estrutura do CIP: Compressão independente de cada conector
Taxa de aprovação de interferência: ≥98% (100% típico, de acordo com IEC)
Qualidade da superfície: Alta estabilidade e boa qualidade de superfície
Tipo de aço: aço temperado S2316
Rendimento da primeira passagem: 100%
Destacar:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Fixture

,

3D Pass Rate ≥98% ST UPC Polishing Fixture
Informação básica
Lugar de origem: Guangdong, China
Marca: chuanglixun
Número do modelo: ST/PC
Condições de Pagamento e Envio
Descrição de produto
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

The fiber polishing fixture features an IPC structure with independent compression for each connector. With an interference pass rate ≥98% (typically 100% according to IEC standards), this fixture delivers high stability and excellent surface quality.

Constructed from high-quality heat-treated steel, the hardened S2316 steel ensures long service life. The fixture is compatible with SC, FC, ST, LC, MPO, E2000, FA connectors and can be customized to meet specific customer requirements.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders reduce polishing costs
  • Polished ferrule dimensions comply with IEC standards
  • 100% first-pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 24 months

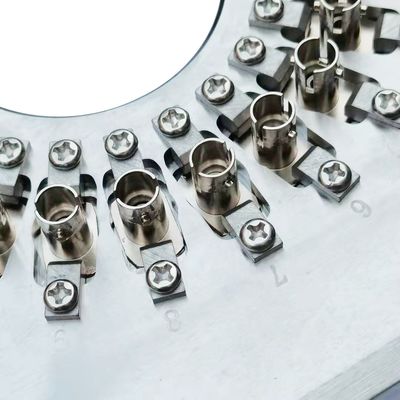

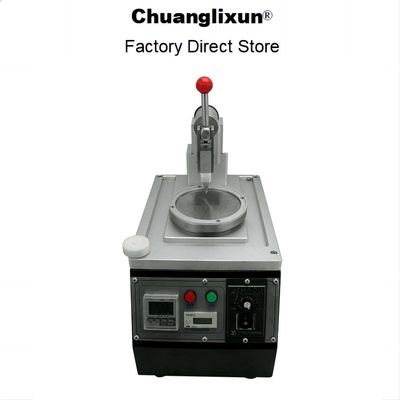

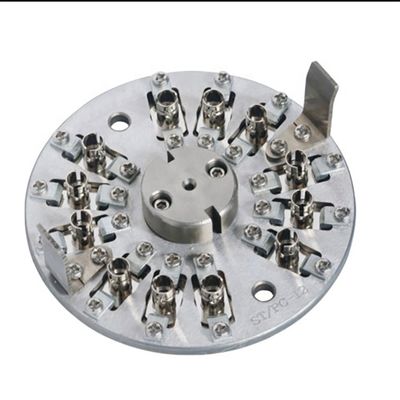

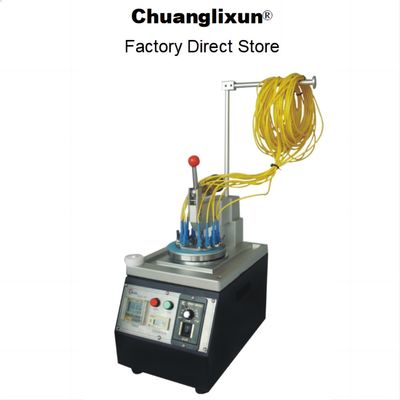

Product Images
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 0 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 1 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 2

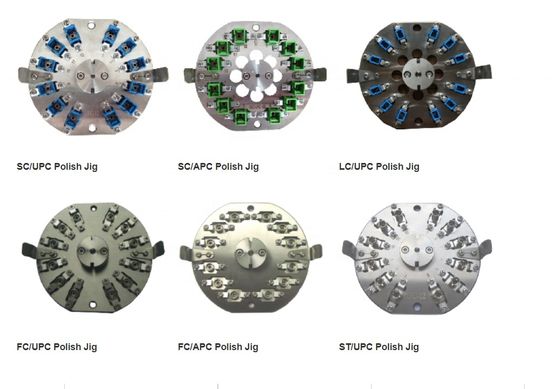

Available Models
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 3 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 4 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 5
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx (4-6 days). Delivery time may vary based on order quantity.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
