Casa /Produtos/Máquina da fabricação do cabo de remendo da fibra/Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production

Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production

1
MOQ
$115.23-126.15
preço
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Temperatura de aquecimento: 40-200 ℃
Precisão de temperatura: +/-5℃
Tensão de entrada: AC 110V ou AC 220V
Consumo de energia: 200W
Período de cura: 30~45min
Temperatura de cura: 80~120℃
Capacidade do conector: 24 conectores
Peso Líquido: 2,5kg
temperatura máxima: 200°C
Cura de Conectores: 1 ~ 24 unidades
Dimensões: 170x140x190mm
Poder: AC220V, 200W
Número do modelo: CLX-24D
Modelos de cura: FC, SC, ST, LC
Bloco de aquecimento: Bloco de 24 portas
Destacar:

40-200 ℃ Heating Temperature Fiber Optic Curing Oven

,

80-120℃ Normal Curing Temperature Epoxy Curing Oven

,

30-45min Curing Period Patchcord Production Oven
Informação básica
Lugar de origem: Cantão, China
Marca: Chuanglixun
Número do modelo: CLX-24D, CLX-24D
Condições de Pagamento e Envio
Descrição de produto

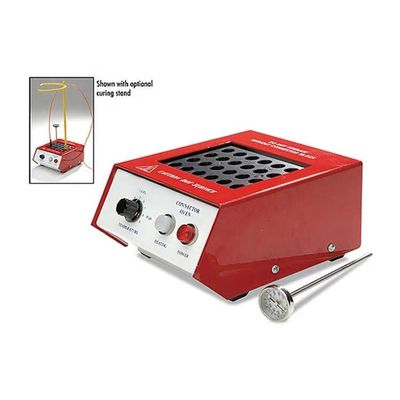

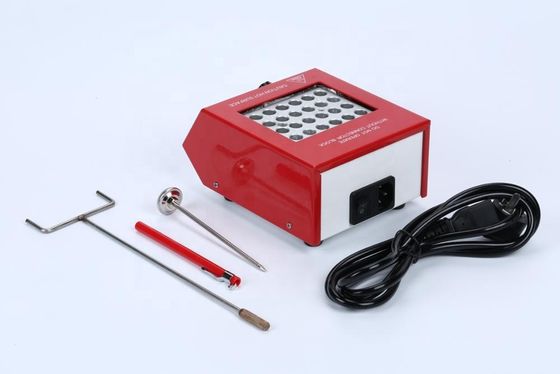

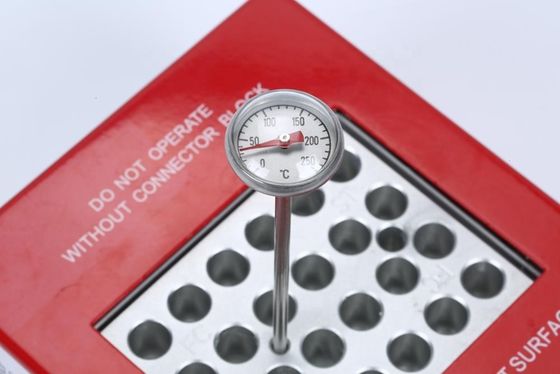

CLX-24D Fiber Optic Connector Ferrule Epoxy Curing Oven for Patchcord Production Digital Type Field Fiber Optic Oven
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 0
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 1
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 2
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 3
Product Highlights
  1. 24 connectors heating simultaneously
  2. Compatible with various connector types
  3. Heating block design minimizes heat loss
  4. Simple operation with excellent curing results
  5. Compact size for easy portability and quick heating
Key Features
  1. Specifically designed for epoxy curing of fiber optic connectors
  2. Adaptable to different connectors via interchangeable heating blocks
  3. Capacity for 24 connectors simultaneously
  4. Precise temperature control with power indicator
  5. Includes 24-port block for FC, ST, SC, SMA, D4 connectors
  6. Automatic timing with audible alarm when cycle completes
Technical Specifications
Curing Model FC, SC, ST, LC
Model Number CLX-24D
Type Fiber Optic Production Machine
Power AC220V, 200W
Maximum Temperature 200℃
Operating Temperature 80-120℃
Curing Period 30-45 minutes
Capacity 1-24 connectors
Weight 2.5kg
Dimensions 170×140×190mm
Warranty 1 Year
Applications
  • Universal curing solution for fiber optic connector manufacturers
  • Heating and solidification of various connector types
  • Epoxy curing for FC, SC, LC, MU, ST connectors
  • Suitable for both facility and field operations
Company Profile
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd., established in 2010, specializes in optical communications equipment. We integrate R&D, production, and technical services, offering a comprehensive range of fiber optic production equipment including automatic cable cutting machines, epoxy injection systems, polishing machines, curing ovens, and testing equipment. Our commitment extends beyond quality products to include exceptional after-sales support and free technical assistance for fiber optic connector production challenges.
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2010, we serve domestic and international markets including North America, Oceania, and Europe with a team of 11-50 professionals.
How do we guarantee quality?
We implement pre-production sampling and final inspection protocols before shipment.
What products do we offer?
Our portfolio includes fiber optic polishing machines, curing ovens, crimping machines, and end face detectors.
Why choose us?
With eleven years of R&D experience, we provide not only quality products but also comprehensive technical support including documentation and video resources.
What services do we provide?
We accept various delivery terms (FOB, EXW, FAS) and payment methods (T/T, MoneyGram) in multiple currencies, with support in English and Chinese.
Digital Type Fiber Optic Curing Oven with 40-200 ℃ Heating Temperature and 30-45min Curing Period for Patchcord Production 4
