Casa /Produtos/Máquina da fabricação do cabo de remendo da fibra/CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision

CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision

1
MOQ
$170-175
preço
CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Fonte de energia: CA 100-240 V
Consumo de energia: 800 W
Peso: 8kg
Temperatura operacional: 20 - ℃ 300
Dimensões: 400*280*120mm
Intervalo de tempo de aquecimento: horas 1 minute-99.99
No. de fibra: 100
Precisão do controle de temperatura: 1 ℃
Capacidade de processamento único: 100 ponteiras cerâmicas ou 50 conectores de fibra óptica
Tensão operacional: AC220V
Frequência de trabalho: 50-60Hz
Temperatura de aquecimento: 20°C〜300°C
Controle precisão: 1℃
Modelos de conectores adequados: SC/FC/ST/LC/E2000/MU
Tamanho da virola: 1,25 mm/2,5 mm
Destacar:

100 ceramic ferrules Optical Fiber Epoxy Curing Oven

,

20-300 ℃ temperature range Fiber Optic Curing Oven

,

1 ℃ temperature control precision Epoxy Curing Oven
Informação básica
Lugar de origem: Cantão, China
Marca: Chuanglixun
Número do modelo: CLX-D02
Condições de Pagamento e Envio
Descrição de produto

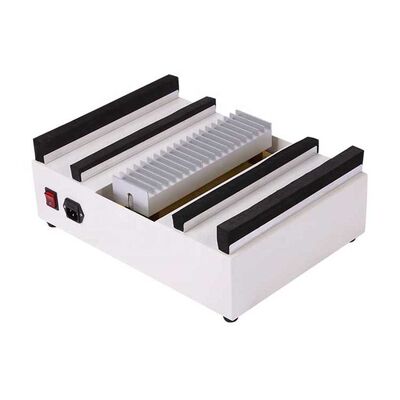

CLX-D02 Optical Fiber Epoxy Curing Oven
CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 0 CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 1
The CLX-D02 Curing Oven is a universal curing oven designed for fiber optic connectors after glue injection. Compatible with standard connectors including FC, SC, ST, MU, and LC types, this unit features a heating board capable of accommodating up to 100 connector ferrules simultaneously. Equipped with indicator lights, timer, and temperature display, the CLX-D02 offers simple operation and delivers perfect curing results. Customization options include MPO heating boards, cable hold shelves, and 1.25mm & 2.5mm adaptors.
Key Features
  • Heats and cures optical fiber epoxy resin with capacity for 100 ceramic ferrules simultaneously
  • Advanced PID temperature controller with self-tuning function for precise temperature setting
  • Temperature control accuracy within 1℃ with adjustable heating time
  • Temperature range from 20℃ to 300℃ with precise 1℃ control accuracy
  • Audible buzzer alerts and time switch control for automated operation
  • Rapid epoxy curing in 10-15 minutes for optimal production efficiency
Technical Specifications
Net Weight 8 KG
Dimensions 425 x 325 x 150mm
Heating Temperature Range 20℃ to 300℃
Temperature Control Precision 1℃
Processing Capacity 100 ceramic ferrules or 50 fiber optic connectors
Compatible Connector Models SC/FC/ST/LC/E2000/MU (1.25mm/2.5mm ceramic ferrule)
Operating Voltage AC220V
Working Frequency 50-60Hz
Heating Time Range 1 minute to 99.99 hours
Power Consumption 800W

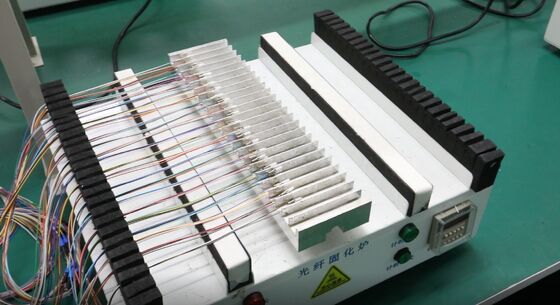

CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 2
Applications
The CLX-D02 Optical Fiber Connector Heating and Curing Furnace is specifically designed for fiber optic connector manufacturers. This equipment efficiently heats and cures various fiber optic connectors with simultaneous capacity for 100 ceramic ferrules or 50 integrated connectors. The advanced PID temperature control system ensures stable temperature regulation with 1℃ accuracy, while adjustable heating times provide flexibility for different production requirements.
Company Profile
CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 3
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as a comprehensive optical communications equipment company integrating research and development, production, after-sales service, and technical support. We are committed to providing high-quality products, excellent after-sales service, and complimentary technical support to our customers. Our team offers effective solutions for technical challenges encountered in fiber optic connector production processes.
Get a Free Quotation via Us >>>GO
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx with delivery in 4-6 days. Shipping time may vary based on order quantity.
How do we pay?
We accept advance booking and multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period with free repairs (excluding consumables). After warranty, accessories are available at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
CLX-D02 Optical Fiber Epoxy Curing Oven for 100 Ceramic Ferrules with 20-300 ℃ Temperature Range and 1 ℃ Precision 4
