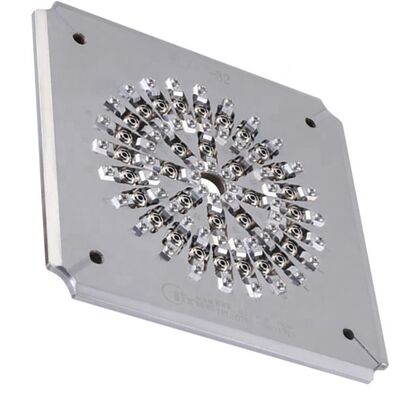

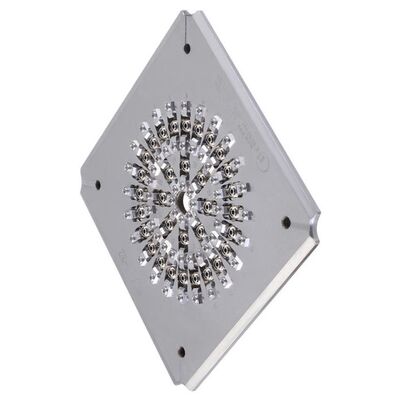

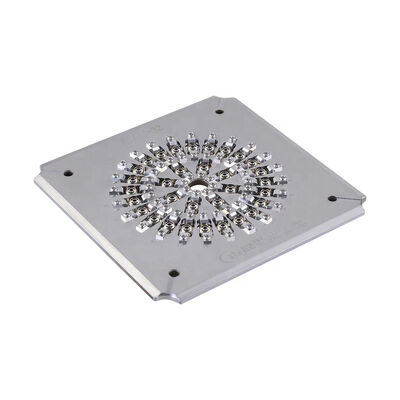

FC UPC 32 Core Connector Polishing Patch Cord Optical Fiber Polishing Fixture
This high-stability fiber polishing fixture/jig delivers exceptional surface quality for optical fiber connector polishing applications.
Product Overview
Manufactured from high-quality heat-treated steel, this hardened steel S2316 polishing fixture offers extended service life and durability. Compatible with various connector types including SC, FC, ST, and LC, with customization available to meet specific customer requirements.
Key Features
- Specifically designed for FC/PC connectors
- Easy jig replacement with simple, flexible operation
- High efficiency: polishes up to 24, 32, or 36 connectors per cycle
- First-pass yield for end face quality reaches 98%–100%
- IPC structure with independent compression for each connector
- Interference pass rate ≥98% (typically 100% per IEC standards)
- PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
- Replaceable accessories to extend service life
Technical Specifications
| Model |
FC-PC-24 |
FC-PC-32 |
FC-PC-36 |
| Brand |
CLX |
CLX |
CLX |
| Connector Type |
FC PC |
FC PC |
FC PC |
| End-face |
PC |
PC |
PC |
| Ferrule Diameter |
2.5mm |
2.5mm |
2.5mm |
| Capacity |
24 positions |
32 positions |
36 positions |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.20dB |
| Return Loss |
≥55dB (PC) |
≥55dB (PC) |
≥55dB (PC) |
| Application |
Polishing assembled FC PC connectors |
Polishing assembled FC PC connectors |
Polishing assembled FC PC connectors |
Material: Stainless Steel
Dimension (L*W*H): 174*174*26 mm
Net Weight / Gross Weight: 1.5 kgs / 2.0 kgs
Suitable Machines: CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a Free Quotation via Us >>> GO
Polishing Performance
Polished Connector Ferrule Faces
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible for optimal performance.
Insertion Loss & Return Loss Test Results
| Connector Type |
SM/UPC |
SM/APC |
MM/UPC |
| Insertion Loss |
≤0.20dB |
≤0.20dB |
≤0.50dB |
| Return Loss |
≥55dB |
≥60dB |
≥30dB |
Geometry Test Results
| No. |
Parameters |
UPC Criterion |
APC Criterion |
| 1 |
Radius of Curvature |
5-25mm |
5-12mm |
| 2 |
Apex Offset |
0-50μm |
0-50μm |
| 3 |
Fiber Height |
-100~+50μm |
-100~+50μm |
| 4 |
Angle |
n/a |
8.00+/-0.50° |
